piqlWriter

Highly precise light modulation for long-term data storage.

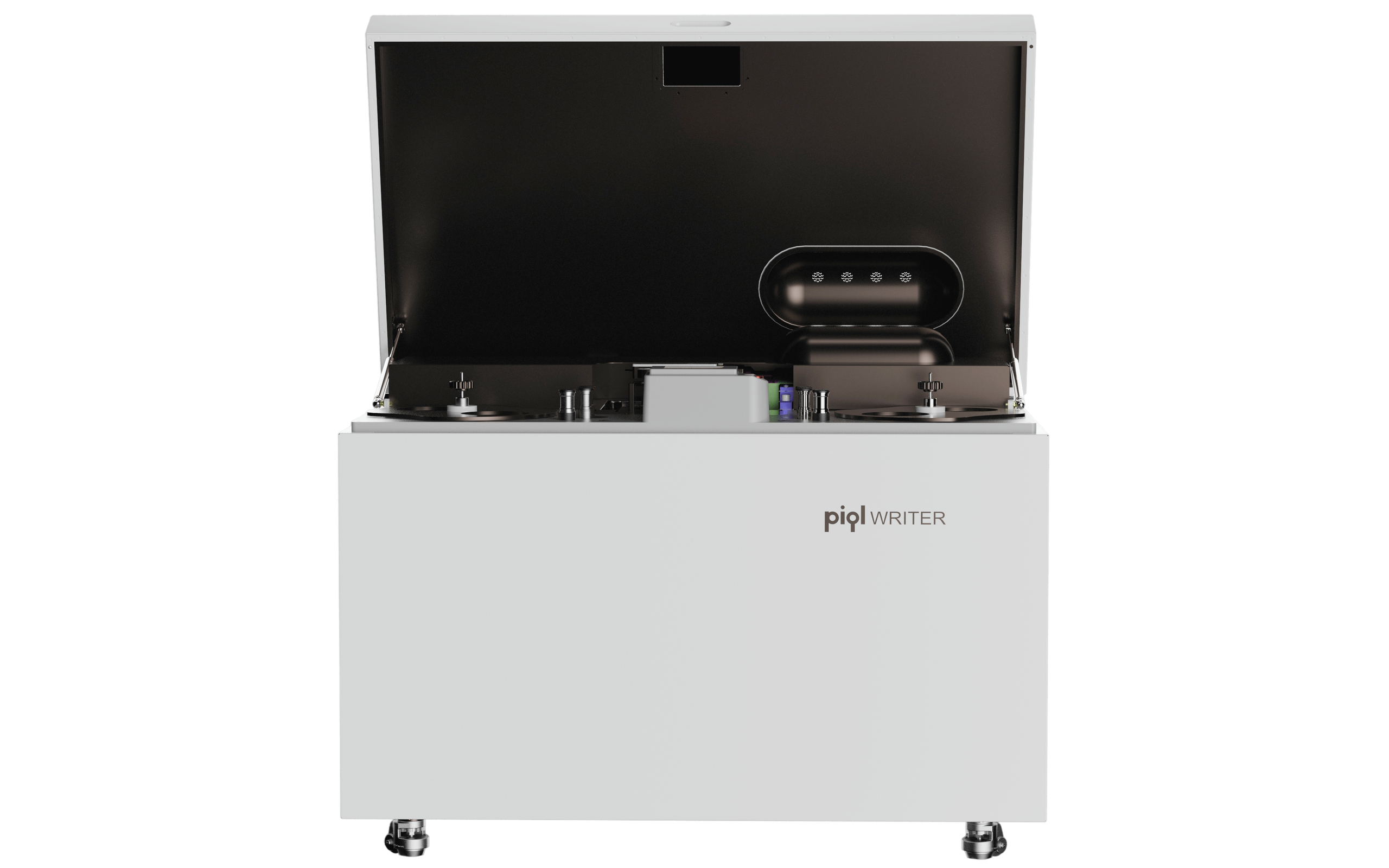

Making it Possible. The piqlWriter

The piqlWriter is a highly sophisticated machine combining the best of mechanics, optics, electronics, image processing and light modulation. Designed to be able to store digital files on piqlFilm for 24/7 operation, and capable of producing more than 1 PB of data per year. Through years of ground breaking development and testing, the current 2nd generation piqlWriter can write data both in digital and visual format. The machine is installed in production locations around the world offering storage on piqlFilm as a service. As part of the Piql System, the piqlWriter can also be purchased for complete control of the full production process. Get in touch with us to learn more. Made in Norway.

People working on the piqlWriter

CAPABILITIES

2 MB

Data density per frame

40 MB/s

Writing speed. Equals 20 frames per second (FPS).

2000+ Hz

Light pulses per second

Designed for Immortality

The piqlWriter is built to optimise writing speed and data density. Award-winning and purpose-built to ensure data stays alive for centuries. An understated painted finish with precisely machined aluminium specifically designed for Piql.

FREQUENTLY ASKED QUESTIONS

Got any questions?

What components comprise the system?
DMD-based light engine, 100W 528nm LED-based light source, intermittent film transport system and RMU server, which is a host computer responsible for receiving and transmitting data to the DMD engine. A touch display is used for user interaction.
What is the production speed?
20 frames per second (280 mm/sec)
What is the total system weight?
The total weight is 250kg
Where is the piqlWriter manufactured?
Tronrud Engineering, Hønefoss, Norway
What is the procurement timeline?
Minimum 1-year lead time
Does it support API connectivity?
What environmental conditions are required? Temperature: ~20 degrees (programmable via embedded sensor) Lighting: Dark room environment essential Climate: Controlled settings recommended
What environmental conditions are required?
Temperature: ~20 degrees (programmable via embedded sensor) Lighting: Dark room environment essential Climate: Controlled settings recommended
