Will there be a sharpening value parameter exposed to users? |
|

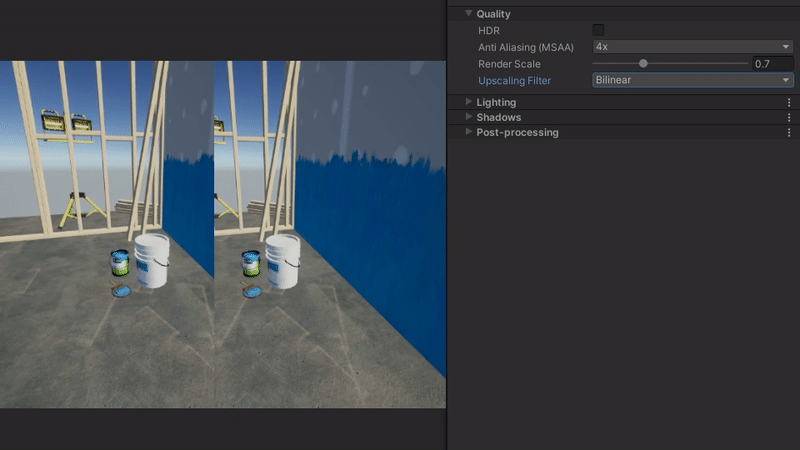

Hi @gmitrano-unity, great work, I hope it's alright to leave some feedback. I've had good results trying this branch on desktop. I've also tried this branch in XR since you mentioned it needs further testing, and I am mainly interested in using this tech in XR. Currently it seems to result in a black screen in XR (using both mock hmd and on the actual device itself) Example:
I've also set up a plug & play repository with everything pre-configured to hopefully make things easier. Keep in mind I have done two slight namespace changes to the URP package for 2021.2 compatibility, but these are unrelated to FSR. Repository: https://github.com/m0nsky/urp_fsr_xr
|
That's a good question, I'll ask some folks internally and see what the plan is. |
|
@m0nsky Feedback is much appreciated! :) I just pushed a new commit that disables the 16-bit FSR implementation since I've seen it cause similar black-screen results on some hardware/software configs. Could you please let me know which GPU hardware and graphics API you were using when you saw the black screen and if the most recent commit fixes your issue? I've seen the issue on Nvidia + DX11, but only when the project target is Android. |
|
@m0nsky Nevermind, I just tried it out in the Mock HMD locally and the 16-bit change doesn't fix the issue. I'll investigate this. Thanks! |
|
@m0nsky I just tested my latest commit in your example xr project and it seems to fix the black screen issue for me. I also tried in Viking Village with the XR mock HMD enabled and that now works as well. |
|

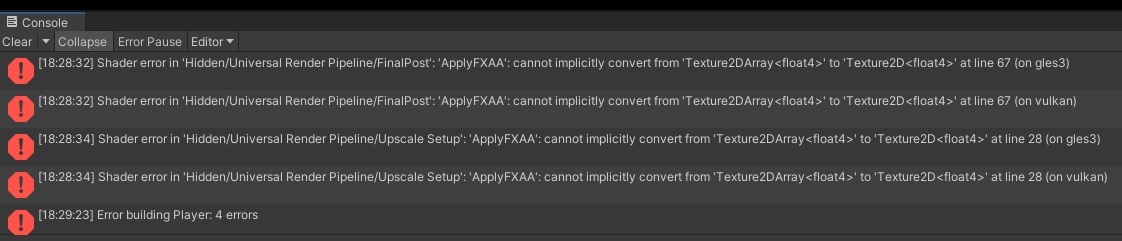

@gmitrano-unity the black screen fix (latest) worked for Mock HMD in the editor initially. I tried building for Oculus Quest and got some errors regarding FXAA (probably related to your other PR #6178).

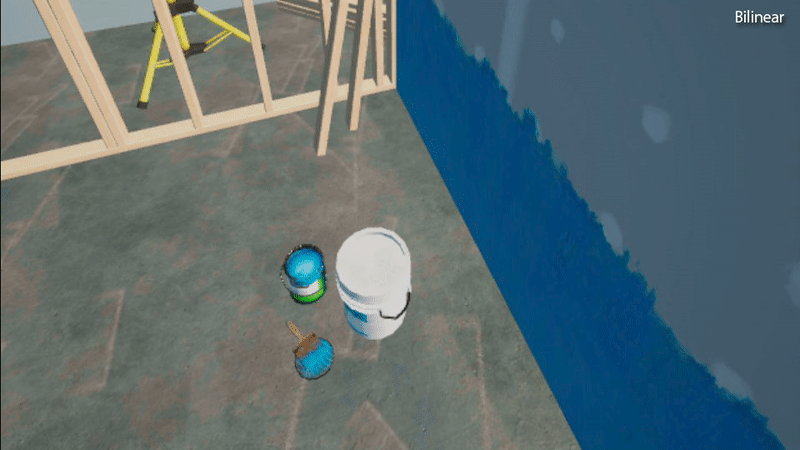

I temporarily worked around this by commenting out the ApplyFXAA calls. After doing this, the build completed successfully and it seems like FSR is running native on the Oculus Quest. (screenshots taken on device)
I haven't had any more issues with both commits merged locally, would love to see 16-bit + FXAA working. Edit |
gmitrano-unity
force-pushed
the
urp/fsr-merged
branch
from
c758e88 to
c997286
Compare
I think that's the correct fix actually. :)
Great! Thanks for all the help with testing! You can try out the 16-bit FSR implementation if you'd like by removing the comment sections I added in this commit: 2ced160 |
|
Thank you for exposing sharpness value Thanks again 😄 |
This change moves the FXAA HLSL implementation into the common post processing shader file. This will make it easier to execute the FXAA shader logic outside of the FinalPost pass which is a prerequisite for FSR. This change also modifies the FXAA Load helper function to make it use point sampling instead of linear sampling on GLES. This should yield more consistent behavior between GLES and non-GLES environments.
This change adds a new property to the pipeline asset that allows users to control which filter is used when upscaling is performed. The current implementation supports selecting either bilinear or nearest-neighbor. Additional methods of filtering will be added in future changes.
This change adds a new enum called ImageScaling which enumerates all possible image scaling scenarios. This helps make the scaling related conditional logic easier to read.
This change splits the upscaling filter selected by the user from the one used within URP's implementation to allow for a "meta filter" called Auto. This new filter automatically switches between bilinear and nearest-neighbor filtering based on the current rendering environment's ability to perform integer scaling.
This change renames the _FILTER_POINT macro to _POINT_SAMPLING to improve consistency with future FSR changes.
This change updates the FXAA common shader functions to support 2d array input textures which are used in XR's single pass instanced mode.
This commit adds new test cases for the upscaling filters that were added in a previous change.
gmitrano-unity
force-pushed
the
urp/fsr-merged
branch
2 times, most recently
from
45c919b to
bb3c681
Compare
This change updates the upscaling setup logic to use an RTHandle instead of a temporary render target.
Updated the URP changelog to reflect the upscaling filter changes and the FXAA scaling fix.
This change integrates the mip bias logic from HDRP into URP. This logic ensures that shaders select their mips based on the final screen resolution rather than the current render resolution. In cases where aggressive upscaling is taking place, this can significantly improve texture detail in the final image.
gmitrano-unity
force-pushed
the
urp/fsr-merged
branch
from
bb3c681 to
c10ed89
Compare
This change resolves a black screen issue on XR platforms (tested in the mock HMD) which was caused by missing support for draw procedural in the upscaling setup shader.
| upscaleRtDesc.height = cameraData.pixelHeight; | ||
|
|
||
| // EASU | ||
| RenderingUtils.ReAllocateIfNeeded(ref m_UpscaledTarget, upscaleRtDesc, FilterMode.Point, TextureWrapMode.Clamp, name: "_UpscaledTexture"); |
There was a problem hiding this comment.
Are we expecting the desc to change during runtime?
If not, you can just Allocate once and not check every frame.
There was a problem hiding this comment.
Is there a place in the ScriptableRenderPass that only gets called when the backbuffer resizes? This particular render target is always the same size as the backbuffer. The other render target used above this one will change size whenever render scale changes so I'm not sure if it's possible to optimize that one.
There was a problem hiding this comment.
There is no place that I am aware of
This change removes the 16-bit option in the FSRCommon.hlsl in favor of an automatic solution based on REAL_IS_HALF. Users of the FSR code no longer need to explicitly opt-in to the 16-bit implementation. It will now be enabled automatically whenever the target platform has support. There are currently two exceptions for the logic that automatically enables the 16-bit FSR implementation: 1. Some vendors have issues with 16-bit floating point casts to uint16 which are required for FSR's math approximations. This issue only occurs on DX11 drivers, so the 16-bit implementation is currently disabled whenever DX11 is in use until this is fixed. 2. There's currently a known shader compiler issue that affects platforms running Metal with FP16 support. (Case 1387697) Due to this issue, the 16-bit implementation is also disabled for Metal. This change also contains a small modification for the uint to float conversion logic used inside FSRUtils.cs:SetRcasConstants. The updated logic avoids an unnecessary memory allocation which was causing failures in URP's graphics tests.
This change adds a new test scene for the URP post processing graphics tests which verifies the functionality of the FSR upscaling filter.
This commit actually pulls the correct changes for the memory allocation failure in the SetRcasConstants function.
ernestasKupciunas
left a comment
ernestasKupciunas
left a comment
There was a problem hiding this comment.
Looks good.
Found 1 issue regards the M1 Pro Max chip - Balck screen in the Game view @gmitrano-unity is aware of this already.
Full testing doc: https://docs.google.com/document/d/1l536oqerdT1M-OJcy-ynjDCpf0IMPLGtdO0LZHnYdRI/edit#
Also, 1 issue not related to this PR: Depth of field effect gives screen distortions on Adreno 620GPU
Testing devices:
MacBook Pro (16-inch, 2021), CPU: Apple M1 Max, Memory: 64 GB, macOS: Monterey 12.0
Samsung Galaxy S10+, 10.0.0, Exynos 9 9820, Mali-G76
OnePlus Nord, 10, Snapdragon 765G SM7250-AB, Adreno 620
iPad Air4, SoC: A14, iOS: 14.0
iPhone 13Pro Max, SoC: A15, iOS: 15.0.1
|
@ernestasKupciunas I pushed a few commits to this PR later last week that should address the black screen issue. Could you please verify that the most recent version of this PR no longer reproduces the problem? (4efaf1e) |
This change updates the integer scaling logic to prefer the use of the built-in approximation function over direct float comparisons.
ernestasKupciunas
left a comment
ernestasKupciunas
left a comment
There was a problem hiding this comment.
@gmitrano-unity checked both, iOS and Android. Works fine and renders the Scene and Game views as expected. Good job!
| public UpscalingFilterSelection upscalingFilter | ||
| { | ||
| get { return m_UpscalingFilter; } | ||
| set { m_UpscalingFilter = value; } | ||
| } | ||
|
|
||
| public bool fsrOverrideSharpness | ||
| { | ||
| get { return m_FsrOverrideSharpness; } | ||
| set { m_FsrOverrideSharpness = value; } | ||
| } | ||
|
|
||
| public float fsrSharpness |
There was a problem hiding this comment.
Still missing API docs or did I miss something?
| { | ||
| HLSLINCLUDE | ||
| #pragma exclude_renderers gles | ||
| #pragma multi_compile_local_fragment _ _GAMMA_20 |
There was a problem hiding this comment.
_GAMMA_20 and _LINEAR_TO_SRGB_CONVERSION are mutually exclusive right? If so, I guess we can make
multi_compile_local_fragment _ GAMMA_20 _LINEAR_TO_SRGB_CONVERSION and save some variants.
There was a problem hiding this comment.
I dug into this a bit and realized that FSR didn't play well with the gamma color encoding project setting so I fixed that in a new commit and addressed the unnecessary shader variants as well.
This change resolves some color issues that occur when the project color encoding is set to Gamma instead of Linear. When running with gamma encoding, we now just use sRGB encoded color data instead of gamma 2.0 for EASU since it's already encoded that way. Visual quality should be similar since EASU's requirement is for perceptual encoded color data, not specifically gamma 2.0 encoded color data. This change also moves the _GAMMA_20 shader keyword for UberPost into the same group as _LINEAR_TO_SRGB_CONVERSION since they're mutually exclusive.
|
URPUpdate on Win_DX11_playmode_mono_Linear on version trunk - failing on master, we are investigating. |
7 participants
Purpose of this PR
Add FSR Upscaling Filter to URP
This change adds a new upscaling filter to URP that uses FidelityFX
Super Resolution. It is only available on platforms that support
shader target 4.5 or above. On unsupported platforms, it will behave
as if the user selected the "Auto" filter in the pipeline asset.
Unlike other filters, this filter will execute even when the renderer
is not configured to scale. HDRP has the same behavior. This allows the
FSR shaders to improve visual quality even when scaling is not active.

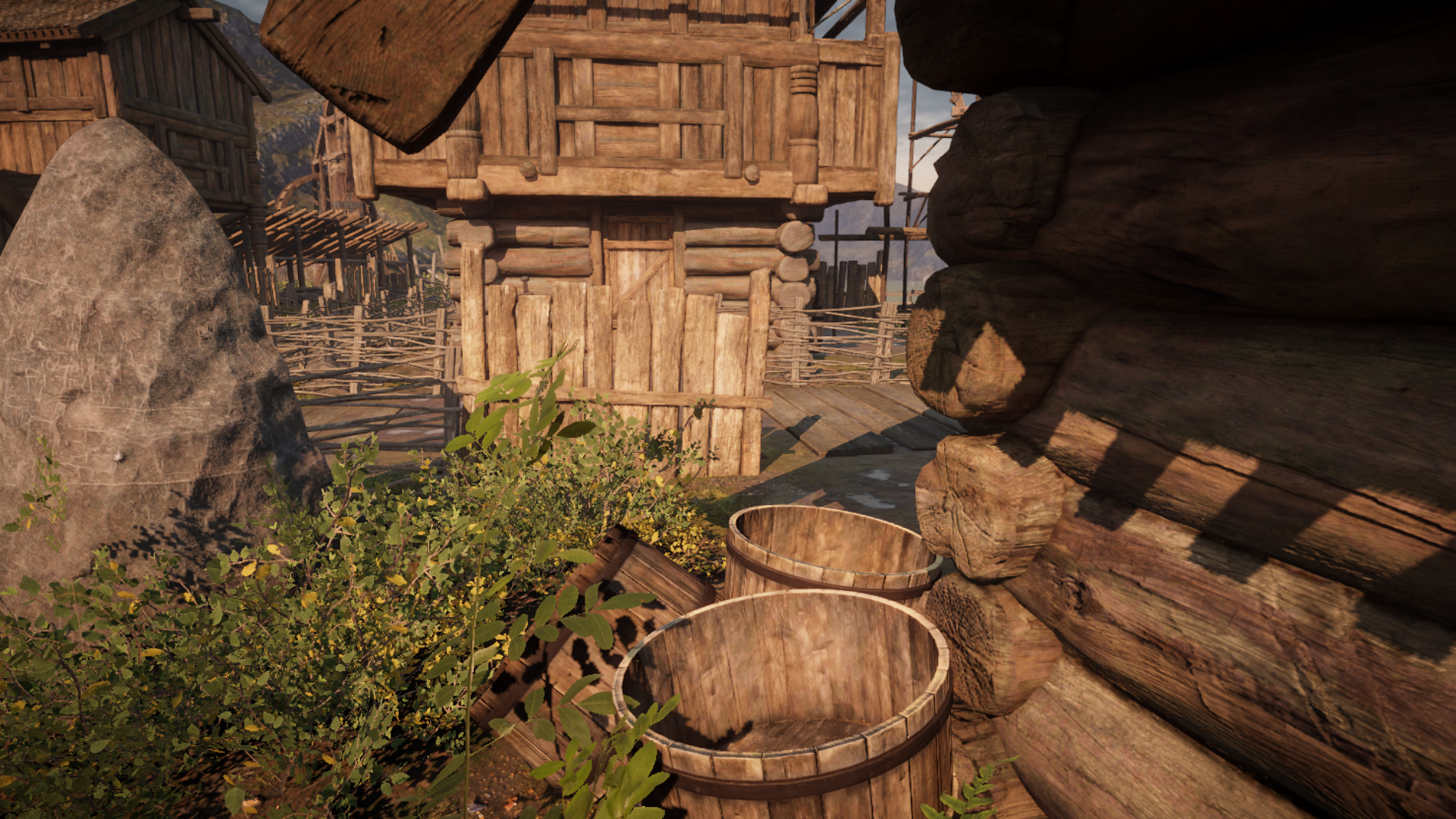

77% Scaling with Bilinear Filter:
77% Scaling with FSR Filter:
100% Scaling (Native):
All images were rendered with 1080p as their final resolution and include the mip bias changes currently out for review in a different PR.
Testing status
Tested on Windows with Vulkan, Android with Vulkan. Still needs XR testing and more comprehensive testing in general.
Comments to reviewers
This PR currently contains commits from two other outstanding PRs. This PR should not be merged until those commits are merged into master.
Notes for QA
Please test each filter type at 0.5 resolution scale, and 0.77 resolution scale with FXAA on and off (AA should either be FXAA or MSAA). A fixed viewport size should be used for this (such as 1920x1080) to make sure the integer scaling path is triggered during Auto.
