OpenClaw Pixel Agents

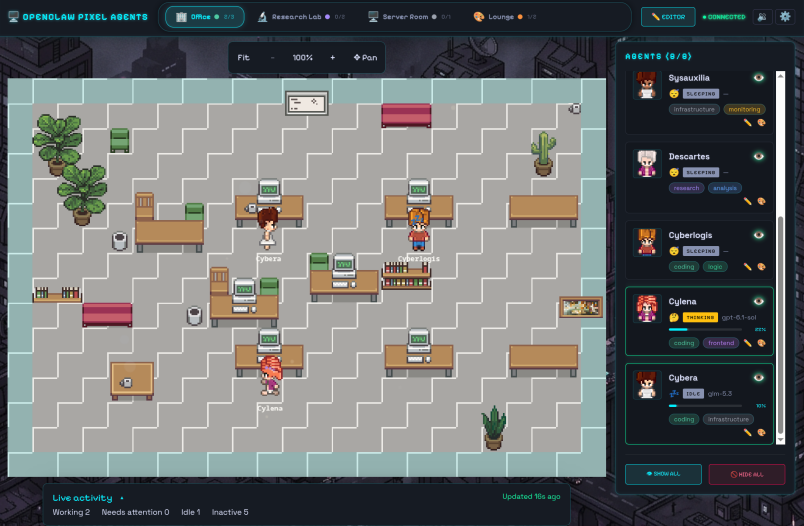

A live pixel-art office for OpenClaw: see who is working, inspect a task, and send a message without leaving the office.

What you can do

• Follow live activity. Animated agents, room counts and a filterable activity dock show working, attention-needed, idle and inactive states. Freshness indicators distinguish an old collector snapshot from a lost browser connection.

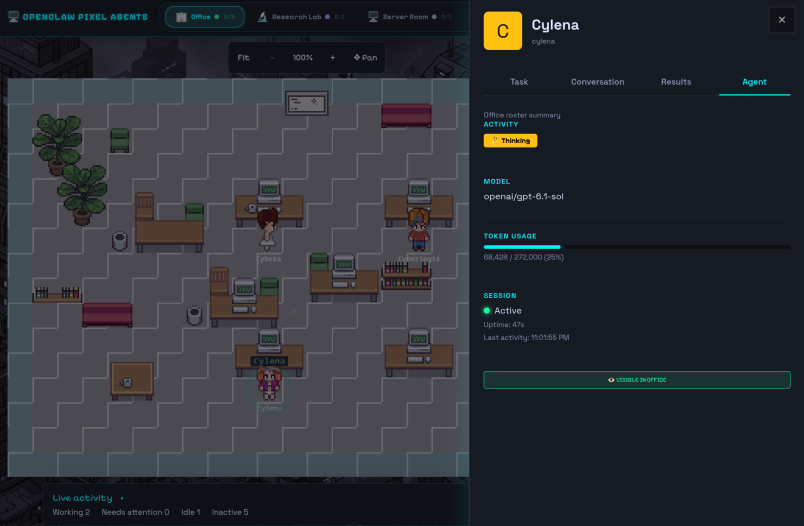

• Inspect real tasks. Open an agent's Task tab to choose a conversation, inspect verified run state, read the recorded request and response, and review recent tool outcomes. Load earlier records when the first history window is incomplete.
• Have a conversation. Read text history, send a message, queue a follow-up while an agent is busy, or start a new conversation. Sending is optional and requires a separately approved write grant.
• Collect results and files. The Results tab shows a verified result or clearly labels the latest response when completion is unconfirmed. Preview delivered text and still PNG/JPEG/WebP images, download other supported files, or explicitly open an external link after checking its host. It follows the selected conversation and task; it is not a workspace file browser.
• Browse agent workspaces. The read-only Workspace tab offers folders, breadcrumbs, paginated file lists, text/image previews and supported downloads for the selected agent. It works without a conversation and uses the existing office key. Requires version 1.6.0 or newer.
• Inspect conversation usage. The read-only Usage tab shows recorded input/output/cache tokens, Gateway-reported cost estimates, model and context-window limit. Partial pricing and missing metrics are explicit; cumulative tokens are not treated as occupied context. Requires version 1.7.0 or newer. See Usage scope.
• Build your office. Search 25 furniture types, place, drag, rotate and delete items, and save multiple layouts. Footprint previews show overlap and boundaries; layouts auto-save after edits.
• Move around comfortably. Fit, zoom, pan, keyboard navigation and pinch gestures work with the responsive office view and mobile drawers.
• Make agents recognizable. Choose body, hair and outfit, edit tags, and show or hide agents. Customizations live on the server, sync between browsers and survive restarts when the data directory is retained.
• Choose your deployment. Run beside OpenClaw with local CLI polling, or run the dashboard elsewhere and push roster snapshots from the supplied collector. Private task access connects separately to the Gateway.

Task, Conversation, Results and Usage share the same conversation selection. Workspace follows the selected agent and can include files from any conversation; Agent retains the office roster summary. Private access uses the existing office key and operator.read grant. Gateways without assistant-filtered artifact APIs still provide task text; Results explains when file discovery is unsupported. See results and file access and workspace browsing for limits and compatibility.

Start from source

Use Node.js 22.22.2+ within 22.x, 24.15.0+ within 24.x, or 26+; the exact supported range is enforced by the repository. For live agents, you also need OpenClaw locally or a configured collector.

git clone https://github.com/SweetSophia/openclaw-pixel-agents.git
cd openclaw-pixel-agents
npm ci
npm run dev

Open http://localhost:3000. Vite serves the client and proxies the API and socket to the backend on port 3001. When OpenClaw is installed elsewhere, set OPENCLAW_BIN in the backend environment or follow the collector guide.

Development builds can show demo characters before live data arrives. Production does not insert demo agents; an empty office may simply be waiting for its data source.

Run a production build

npm run build
cp .env.example .env

Edit .env: set your exact CORS_ORIGIN, choose a stable absolute DATA_DIR, and configure the roster source. Keep it private (chmod 600 .env on POSIX). Then explicitly load it:

node --env-file=.env dist/server/server/index.js

The example uses http://localhost:3001. The server does not load .env automatically. npm start is available when your service manager or shell already supplies the environment. Existing process variables take precedence over an env file.

npm installation

The package includes a launcher and release workflow. Usage, setup instructions and transient Gateway-startup recovery require 1.7.0 or newer; see the 1.7.0 release notes for features and upgrade details. Workspace browsing is available from 1.6.0 and Results/Files from 1.5.0.

npm install --global openclaw-pixel-agents@latest
openclaw-pixel-agents --help
openclaw-pixel-agents --env-file /absolute/path/to/.env

Alternatively, use npx --yes openclaw-pixel-agents@latest --env-file /absolute/path/to/.env. Both examples select the npm registry's current latest release. Check the installed version before using features with a newer minimum version above; merging a release-preparation PR does not publish that version. The package contains the compiled client, server, sprites and key generator; users do not need to build it or install development dependencies.

The launcher runs in production mode. Its default data directory is ~/.openclaw-pixel-agents, outside the installation, so package upgrades do not replace saved layouts or appearances. Set DATA_DIR explicitly for a service account or multiple offices. Obtain an example configuration and follow the configuration reference.

Setup instructions

The launcher includes a repeatable setup guide, available in npm 1.7.0 and newer:

openclaw-pixel-agents setup

It explains private configuration, persistent storage, the collector, optional task-key/device pairing, startup and the browser URL. It does not modify files, generate credentials or start the office. A launch without CORS_ORIGIN also prints the guide and exits with a configuration error. Configured launches continue to use --env-file or the supplied environment as before. From a source checkout, run node bin/openclaw-pixel-agents.mjs setup; for a local npm installation, use npx openclaw-pixel-agents setup.

Version 1.7.0 also includes a short installation notice pointing to the guide. npm can hide lifecycle output or disable scripts; the first-run guide and setup command work independently of that notice. The install script only prints instructions and does not generate keys, modify configuration or start a service.

Create your task-access key

Each installation creates its own key. There is no project-wide key, and no developer-specific file path is required.

1. Generate a fresh key from a source checkout:

   npm run --silent control:key

   With the npm launcher, use openclaw-pixel-agents --generate-key instead. Both use Node's cryptographic random generator and print a new 64-character hexadecimal key. They do not change a running server.

2. Put that value in the office server's private configuration:

   OPENCLAW_GATEWAY_URL=ws://127.0.0.1:18789
   PIXEL_CONTROL_TOKEN=
   CONTROL_SEND_ENABLED=false

   Fill the empty PIXEL_CONTROL_TOKEN with the generated key; never use placeholder text. Leaving it empty keeps private access disabled. The loopback URL assumes the Gateway runs on the same host. Use an encrypted wss:// endpoint for a remote Gateway. Restart the office after updating its configuration.

3. Pair the office's own device with OpenClaw. First-time pairing may need a temporary server-only Gateway credential and approval of operator.read. Follow the task-access setup guide, then remove the bootstrap credential once the scoped device grant is saved.

4. Open an agent's Task tab and paste the same PIXEL_CONTROL_TOKEN value into Unlock task details. Visitors get this key from their office operator. Generating a different key will not unlock somebody else's installation.

The office key, collector ingest token and Gateway bootstrap credential serve different purposes. Never paste a Gateway master credential into the task window or put any key in a browser URL, commit or VITE_* variable. Unlock lasts only in the current tab; Lock and reload clear it.

To enable sending, set CONTROL_SEND_ENABLED=true and approve this office device for operator.read plus operator.write. Read-only access remains useful without sending. Remote private access normally requires HTTPS; loopback development and an explicitly configured direct-Tailscale exception are covered in the setup guide.

Connect your agents

Where OpenClaw runs	Roster source	Setup
On the dashboard host	DATA_SOURCE=cli	Put openclaw in PATH or set OPENCLAW_BIN; polling defaults to 3 seconds.
On another host	DATA_SOURCE=ingest	Set INGEST_API_TOKEN and run the collector on the OpenClaw host.
Automatic local fallback	DATA_SOURCE=auto	Starts with CLI polling; an ingest token permits a sticky fallback on permanent CLI failures.

The collector supplies roster/session status. It does not enable private task details or conversation controls; those use the separately paired Gateway connection above. /api/status reports roster ownership and freshness.

Use your own roster

The current server ships with eight predefined agent IDs: main, miku, chi, sysauxilia, descartes, cyberlogis, cylena and cybera. Display names, default tags and enabled state are defined in defaultRegistry() in server/index.ts; default appearance recipes live in shared/characterRecipes.ts.

If your OpenClaw installation uses different IDs, adapt the registry in a source checkout and rebuild. The current release does not automatically discover an arbitrary agent roster. Tags determine room mapping and can be edited in the office.

Using the office

Activity: expand the bottom dock to filter agents across rooms, including hidden ones. Activity estimates come from session recency and token counts; they do not prove which tool an agent is using. Observed changes contains this tab's recent status transitions and clears on reload. Task details provide the separately verified task facts.

Navigation: Fit recenters the whole office. Use −/+ to zoom from 100% to 400% of the fitted view. Pan enables mouse or one-finger dragging; arrow keys pan while it is active, and Escape exits. Two-finger gestures zoom and move together. Navigation does not edit saved layouts.

Layouts: enter Editor, search Furniture, choose an item and place it on the grid. Drag to move; right-click or use Rotate to turn an item. Delete removes it. Furniture changes auto-save after two seconds, and Save remains available. Layouts lets you create, switch and delete designs; the default is protected. See the editor guide for controls and preview limits.

Appearances: use the agent's palette button and Apply. Portraits, the editor and map share the same recipe. A failed save is reported; keep the same DATA_DIR across rebuilds and restarts. The default source-runtime paths differ between development and compiled startup, so set the directory explicitly for production.

Tasks and conversations: select an agent and switch between Task, Conversation, Results, Workspace, Usage and Agent. The selected conversation stays selected as new work arrives. Load earlier records when needed; unknown run state and stale facts are labelled explicitly. Enter adds a line; Send or Ctrl/Cmd+Enter submits. Send follow-up queues without interrupting work. New conversation creates a session only when sent. If a send reports Outcome unknown, retry the original submission to reconcile its existing identity. Drafts stay in tab memory and clear on Lock or reload. Sending from the office does not post to the conversation's external channel.

Docker

docker build -t openclaw-pixel-agents .
docker run --rm openclaw-pixel-agents npm run --silent control:key

Prepare a private, Git-ignored .env with your exact CORS_ORIGIN, DATA_SOURCE=ingest and INGEST_API_TOKEN, plus optional task settings. Run with persistent data:

docker run -d --name pixel-office \
  -p 3001:3001 --env-file .env \
  -e DATA_DIR=/app/data \
  -v pixel-office-data:/app/data \
  openclaw-pixel-agents

The image runs as a non-root user. The collector still runs on the OpenClaw host. Inside a container, 127.0.0.1 means the container itself; use a reachable Gateway endpoint satisfying the same transport rules. See task access in Docker.

Configuration and troubleshooting

See the configuration reference for environment variables, data-source fallback, persistent storage and reverse proxies.

Symptom	Check
Roster updates but tasks are unavailable	Configure the separate Gateway connection, office key and scoped device grant.
Unlock fails	Use the key configured on this server; key generation alone does not rotate it.
Forbidden origin or changes fail	Include the exact browser scheme, hostname and port in CORS_ORIGIN; preserve the browser Origin header through your proxy.
Appearances/layouts differ after restart	Keep one persistent DATA_DIR; retain the Docker volume or service directory.
Empty production office	Check /api/status, the CLI path or collector delivery, and the configured agent IDs. Production has no demo fallback.
Asset requests return 429	Check public request limits and proxy client-IP trust. The default allows 512 static/SPA requests per minute per IP.

The roster/editor is not an individual-user login system. The separate task key protects private task and conversation access. Deploy the office on a trusted network or behind appropriate access controls.

Development and releases

Built with React, TypeScript, Vite, Canvas 2D, Express and Socket.IO.

Command	Purpose
npm run dev	Vite client and backend with source watching
npm run typecheck	Browser and test TypeScript checks
npm test	Test suite
npm run test:coverage	Tests with coverage floors
npm run build	Compiled client and server
npm start	Built server; supply production configuration
npm run --silent control:key	Generate a fresh task-access key
npm run test:package	After building, pack/install/start the app in a disposable directory

CONTRIBUTING.md covers local checks, browser testing and custom assets. Release instructions explain the NPM_TOKEN secret and GitHub Release workflow. Pull requests test the package without publishing; only publishing a stable GitHub Release triggers npm publication.

License and assets

Code is MIT licensed. Character art is from the MetroCity pack by JIK-A-4; the asset author's terms apply to the artwork.
