@AArnott Unity runner stalled?

Not stalled. Just erroring out.

@AArnott
I've tested in local, could you change build command of CI.
removes -nographics -silent-crashes -noUpm will work.

I had to bring back -noGraphics because otherwise it failed with an error about not having any DISPLAY. And now although the error has gone away, the build appears to hang, which is a symptom I recall from a PR from a year or so ago when we last tried this.
But I have learned a trick about getting DISPLAY to work on linux build agents. If we think the hang is because of that, I can try 'fixing' that. But ultimately if it's a modal dialog box that is being displayed, that won't help us.

This command is brought from MemoryPack's CI, which is similarly configured and running on 2021.3.
https://github.com/Cysharp/MemoryPack/actions/runs/3563268776/jobs/5985866386

/opt/unity/Editor/Unity
-batchmode
-logfile
/dev/stdout
-quit
-customBuildName
StandaloneLinux64
-projectPath
/github/workspace/src/MemoryPack.Unity
-buildTarget
StandaloneLinux64
-customBuildTarget
StandaloneLinux64
-customBuildPath
/github/workspace/build/StandaloneLinux64/StandaloneLinux64
-executeMethod
PackageExporter.Export
-androidVersionCode
0
-androidKeystoreName

-androidKeystorePass

-androidKeyaliasName

-androidKeyaliasPass

-androidTargetSdkVersion

It is using https://github.com/game-ci/unity-builder
Maybe this is a using unity docker image https://github.com/game-ci/docker/blob/main/images/ubuntu/base/Dockerfile

I tried the display emulation, but with -nographics removed it still fails with:

Error opening default X display. You must have a valid X server running.

(Unity:79906): Gtk-WARNING **: 06:32:46.267: cannot open display:
##[error]Bash exited with code '1'.

I can try the docker image you suggested too.

Well, building works when I run it on the agent myself, using the same script. I don't yet know why it fails when the build is orchestrated by AzP.

remove only -noUpm?

-noUpm causes 'UI' does not exist in the namespace 'UnityEngine' error after Unity update.
https://forum.unity.com/threads/command-line-build-fails-after-updating-to-unity-2019-4.937175/
In other words, the only problem is -noUpm, and -nographics may be okay to put on.

-nographics may be okay to put on.

I figured as much. But it didn't work with that switch (and without -noUpm) either. I think that's when it appeared to hang, but I don't remember. I'll try again.
But according to this it seems (recent versions of?) unity simply always require an X server. The emulator I was trying should work according to that forum, but since I'm running an ubuntu 21 agent, I can't install it any more. I'll have to try upgrading that again.

@neuecc What if we try switching at least the unity build to github actions to match memorypack? I pushed a change to this PR to do that, but it'll require access to your unity license secret. And it doesn't appear to be running in this PR and I'm not sure why.

I've added UNITY_LICENSE_2021 to github secret, I think GitHub Actions will now work.

@neuecc The new github workflow still isn't running. Do you have any control as repo owner over that? Or if we have to merge to develop before it works, and odds are good it won't, are you ok to hash it out together after the merge?

ah, it is filter for main branch?
ok to merge but requires add for develop?

Oh, I forgot to enable the develop branch in the github workflow file. I've fixed that. But I still don't see it showing up in this PR's validations.

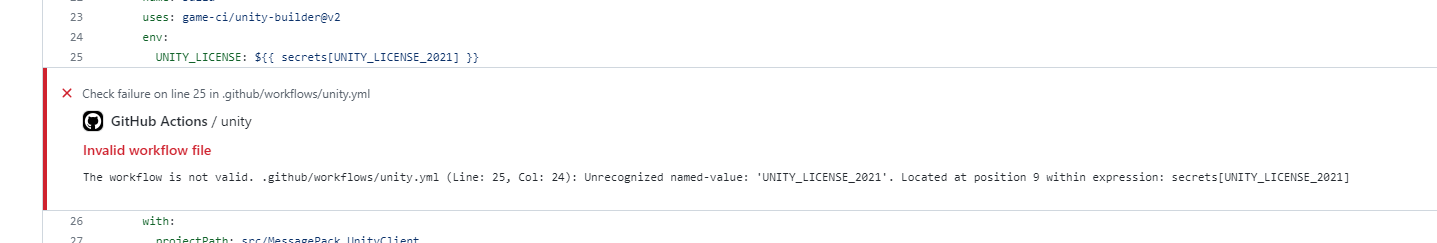

Originally, secret using from matrix, change to same way?

  build-unity:
    if: "((github.event_name == 'push' && github.repository_owner == 'Cysharp') || startsWith(github.event.pull_request.head.label, 'Cysharp:'))"
    strategy:
      matrix:
        unity: ["2021.3.11f1"]
        include:
          - unity: 2021.3.11f1
            license: UNITY_LICENSE_2021
    runs-on: ubuntu-latest
    timeout-minutes: 15
    steps:
      - uses: actions/checkout@v3
      # Execute scripts: RuntimeUnitTestToolkit
      # /opt/Unity/Editor/Unity -quit -batchmode -nographics -silent-crashes -logFile -projectPath . -executeMethod UnitTestBuilder.BuildUnitTest /headless /ScriptBackend mono /BuildTarget StandaloneLinux64
      - name: Build UnitTest(Linux64, mono)
        uses: game-ci/unity-builder@v2
        env:
          UNITY_LICENSE: ${{ secrets[matrix.license] }}

@neuecc It seems this repo may need more than just the UNITY_LICENSE_2021 secret. Per this docs, you also need to set UNITY_EMAIL and UNITY_PASSWORD as secrets.
I also wonder based on this doc whether the secret license code must be unique for each repo.
Alternatively, perhaps the problem is that (and security wise this would make sense), I can't submit a workflow file that can access your github secret until you approve that somehow. If that's the case, maybe this licensing error is because I don't have access yet.

Per this doc, builds from repository forks don't get access to your secrets (which makes sense). This PR comes from a fork. I'll recreate from within your repo.

Superseded by #1537.
