Deploy baby step tutorial

This tutorial goes though the whole app deployment lifecycle. It goes through the steps but doesn't elaborate very much on each step, its purpose is to show the whole picture. One should seek additional information elsewhere. Basic knowledge of Docker and related is assumed. If you need help with that refer to the official Docker tutorials.

Creating the application

We will use GitHub directly.

Create a personal account in GitHub if you don't have one, it will be used later for the webhooks too.
Create a new repository in your account.

Create a new application. Our application will make a whale say something. Create a new file named myscript.sh and enter this script in it:
```
#!/bin/bash
cowsay boo
```
Commit the file.
Cool, now we have an application. We can't test it as it is because it depends on the cowsay thing, which we will install via Docker.

Creating a docker image

In our repo create a new file called Dockerfile and enter this script in it and commit. This makes a Docker image derived from the image docker/whalesay, which has the cowsay app that we depend on.
```
FROM docker/whalesay
COPY myscript.sh /
CMD sh /myscript.sh
```

Setting up deploy config for the application

Now lets make a deploy config for our application. Create a file called deploy.config.yml somewhere. Normally you would put the config in deploy/config/local.yml, but here we make separate file for the tutorial.

A deploy project configuration consists of three independent sections.

repo section which is used for git commands like sync and clean. Here we describe which repositories to sync and where to sync them. We need this section if we want to sync in response of webhooks.
image section which is used for Docker commands like build and push and rmi. This is where we describe what image we are building and from where.
pod section which is used for the run and stop commands. Here we describe the container pod used to run the project. Right now it is a rocker-compose pod definition, it may describe one or more containers that run together.

Lets show the config step by step:

Setup our project. Lets declare the path of the project as a variable because we will be using it often. The image name will be used later when we build and push a Docker image. The bobi in this name refers to my Docker Hub username and should be changed accordingly, and the path too of course. I override the default HTTP port here, this is used when we receive webhooks. We declare which branches we are going to use. Deploy is able to detect the branches of your projects from GitHub, if you supply it with credentials. To simplify the configuration here I declare the branch so deploy can use this information if it is unable to get the list of branches from the GitHub API. This will also prevent other branches from being synced, if, for example, we receive a webhook for push in another branch.

http:
  port: 1337

projects:
  deploy-tutorial:
    branches: master

    vars:
      project.local: /Users/bobi/Downloads/deploy-tutorial
      project.image: bobi/whalesay

Add configuration of the repository. Notice how we spell the repo. We just place github/, no .com or anything. The right side of the repo is the local directory where it will be synced. This configuration is used for git syncing.

projects:
  deploy-tutorial:
    repo:
      github/bobef/deploy-tutorial: ${project.local}

Now lets add Docker configuration for the project. This will be used when building and and pushing a Docker image. Path here is where the Dockerfile is, the same directory where we sync our project. Alternatively we could place a git URL for the path, because Docker can build directly from git. But building locally allows us to test and adjust things and not have to push broken, untested things to git.

projects:
  deploy-tutorial:
    image:
      image: ${project.image}:{branch}
      path: ${project.local}

Finally lets create a pod configuration. First add the pod to the config. Notice the vars section here. It is different from the project vars section - these are vars for the pod template. So we pass the image and branch names forward.

projects:
  deploy-tutorial:
    pod:
      path: ${project.local}
      file: whalesay.pod.yml
      vars:
        image: ${project.image}
        branch: ${branch}

Then create the pod itself. The pod is a rocker-compose YAML file. In this example a very simple one. We can create this one in our git repo also.

namespace: whalesay
containers:
  app:
    image: {{.image}}:{{.branch}}
    restart: never

Finally our deploy.config.yml should look like this:

http:
  port: 1337

projects:
  deploy-tutorial:
    branches: master

    vars:
      project.local: /Users/bobi/Downloads/deploy-tutorial
      project.image: bobi/whalesay

    repo:
      github/bobef/deploy-tutorial: ${project.local}

    image:
      image: ${project.image}:{branch}
      path: ${project.local}

    pod:
      path: ${project.local}
      file: whalesay.pod.yml
      vars:
        image: ${project.image}
        branch: ${branch}

Setting up deploy

We will show two ways of using deploy. Natively installed and as Docker image. Choose whichever suits you better.

As Docker image

This is the proffered way of using deploy because we don't need to deal with any dependencies. We only need Docker. Lets create a shortcut script because Docker CLI commands are quite lengthy. On Unix based system make a deploy.sh and put this inside, replacing the paths with your actual ones.

Create our shortcut script, replacing the paths with your actual paths. What happens here is we share our Docker config and SSH config from the host with the deploy Docker container. We also share the directory where we store our projects and configs. This is one way to do it. Another way, described in deploy's docs, is placing the SSH key and the config in a directory and binding it to /app/config inside the container. We still need to share the Docker config from our user directory if we want to push, because Docker needs login.
```
#!/bin/bash
docker run --rm -ti \
            -p 1337:1337 \
            -v /Users/bobi/Downloads:/Users/bobi/Downloads \
            -v /Users/bobi/.docker:/root/.docker \
            -v /Users/bobi/.ssh:/root/.ssh \
            -v /var/run/docker.sock:/var/run/docker.sock \
            perennial/deploy:master \
            deploy "$@" --config /Users/bobi/Downloads/deploy.config.yml
```
Then make it executable:
```
chmod +x deploy.sh
```

Test our script.

./deploy.sh test --var debug=true

We should get output like this. Deploy will print the global variables and terminate because other parameters are not given.

Vars:
-----
deploy.root = /app
debug = true
^^^^^
deploy <action[,action]..> <project[#branch]>.. [OPTIONS]..

Native installation

First we need git and rocker-compose. I don't want to explain how to install git here, if you don't have it, you probably don't need to sync git repos. rocker-compose can be downloaded as binary. Just extract it and put it in your path. The tested version in this tutorial is 0.1.1.

Deploy depends on node.js, until I have the time to pack it neatly and distribute it as a single binary. So download the node archive for your OS. At least node '4.0.0'.
Extract it somewhere, e.g. /Users/bobi/Downloads/node-v4.1.0-darwin-x64.
Download deploy and extract somewhere.

Lets create a small shortcut script for deploy. On Unix based system make a deploy.sh and put this inside, replacing the paths with your actual ones. We pass the --config argument to make deploy always use our config, or we could just place the config as config/local.yml inside deploy's folder.

#!/bin/bash
#                                                   # #                                           #  #                                                  #
################  path to node  ##################### ############  path to deploy  ###############  ########  additional arguments for deploy  #########
#                                                   # #                                           #  #                                                  #

/Users/bobi/Downloads/node-v4.1.0-darwin-x64/bin/node /Users/bobi/Downloads/deploy-master/deploy.js "$@" --config /Users/bobi/Downloads/deploy.config.yml

Then make it executable:

chmod +x deploy.sh

On Windows the script (deploy.bat) would look something like this (untested):

@echo off
C:\Path\To\node C:\Users\bobi\Downloads\deploy-master\deploy.js %* --config C:\Users\bobi\Downloads\deploy.config.yml

Test our script.

./deploy.sh --var debug=true

We should get output like this. Deploy will print the global variables and terminate because other parameters are not given.

Vars:
-----
deploy.root = /Users/bobi/Downloads/deploy-master
debug = true
^^^^^
deploy <action[,action]..> <project[#branch]>.. [OPTIONS]..

Syncing with deploy

Manually

Use the script we have prepared in the previous step. We just tell deploy to sync the project deploy-tutorial and branch master. That's all. From where and to where to sync is read from the config file we already created.

./deploy.sh sync deploy-tutorial

We should get output like this:

Syncing project deploy-tutorial branch master ...
==========
Local repo directory is /Users/bobi/Downloads/deploy-tutorial
git clone --recursive --branch master git@github.com:bobef/deploy-tutorial.git /Users/bobi/Downloads/deploy-tutorial


Cloning into '/Users/bobi/Downloads/deploy-tutorial'...

All good.

With webhooks

For this to work you will need to run deploy somewhere where it is accessible from the Internet.

Run deploy without any arguments. This will start a web server and listen for hooks.
```
./deploy.sh
```
We should see this message:
```
Listening on 0.0.0.0:1337 ...
```

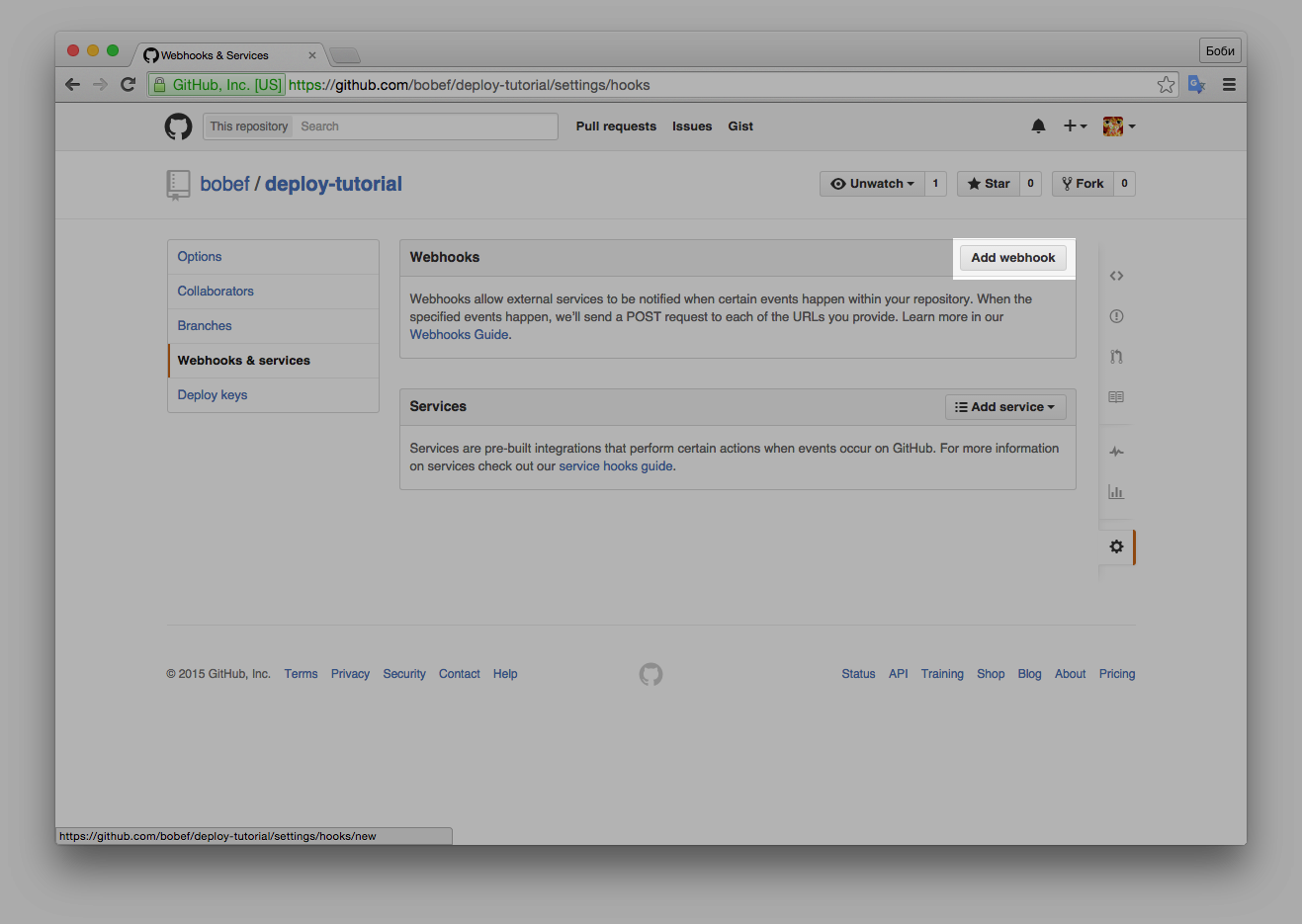

Now we need to set GitHub to send notifications to our deploy. Go to the repo settings about webhooks.

Add a webhook with the URL of your server. The meaning of /deploy is explained in deploy's docs. This is the default, but you can change it. The port is the one you configure or if you use the default 80, you don't need to enter a port.

Save the hook.

GitHub will send a ping to the hook. Deploy doesn't care about pings, only about pushes, so you will get error message in the output of the server.
```
(1) Incoming request 192.30.252.34 2015-09-22T13:39:13.619Z .
(1) Unable to handle payload.
```
Lets modify one file in the repo so GitHub will send a push notification. Lets edit myscript.sh and change what the whale is saying from boo to moo.

Now in the output of the server we should see a successful request.
```
(2) Incoming request 192.30.252.42 2015-09-22T14:01:42.645Z .
(2) Identified as github payload.
(2) Spawning deploy sync repo:github/bobef/deploy-tutorial master --config /Users/bobi/Downloads/deploy.config.yml
(2) All good.
```

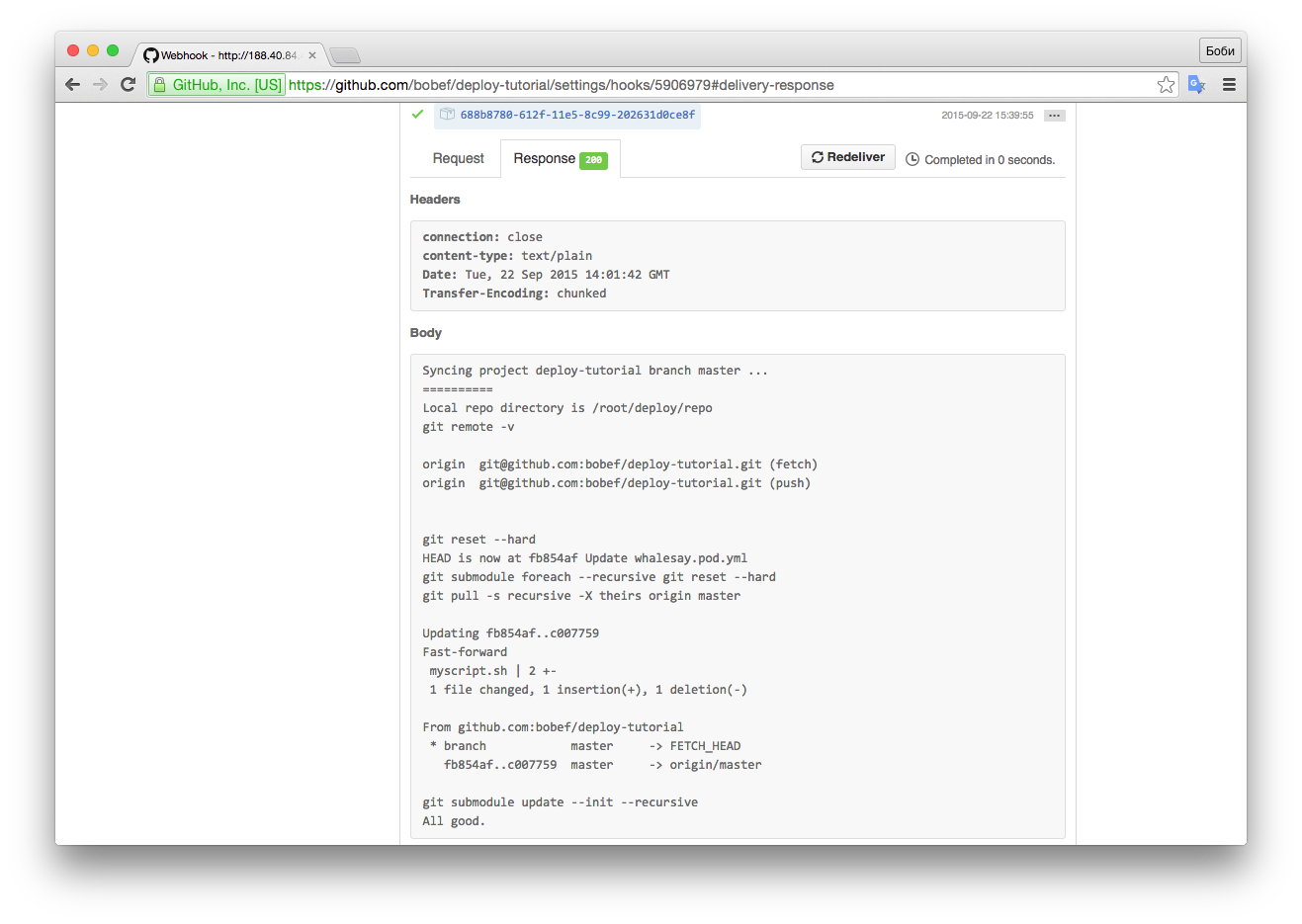

And if we go back to the repo's webhook settings, we should see in the output of deploy that it ran a sync and updated the file myscript.sh.

Building a Docker image with deploy

Start the build command. If you are running Docker on OSX or Windows, start this from the Docker terminal, or modify your deploy shortcut script so it will set some Docker environment variables.

./deploy.sh build deploy-tutorial

And the output should look similar to this:

Building project deploy-tutorial branch master ...
==========
docker build --force-rm -t bobi/whalesay:master .
Sending build context to Docker daemon 52.22 kB
Step 0 : FROM docker/whalesay
 ---> fb434121fc77
Step 1 : COPY myscript.sh /
 ---> 35dc128dd143
Removing intermediate container f6afbc498e6b
Step 2 : CMD sh /myscript.sh
 ---> Running in 74a796450340
 ---> 4828b20471bf
Removing intermediate container 74a796450340
Successfully built 4828b20471bf
All good.

Running with deploy

Once we have built the image we can run it or push it. If you are running Docker on OSX or Windows, start this from the Docker terminal, or modify your deploy shortcut script so it will set some Docker environment variables.

Start the run command:

./deploy.sh run deploy-tutorial

It is using rocker-compose to run our pod in the background. So we won't see the output of the program directly.

Runing project deploy-tutorial branch master ...
==========
Using pod definition /Users/bobi/Downloads/deploy-tutorial/whalesay.pod.yml.
rocker-compose run -f -
INFO[0000] Reading manifest from STDIN
INFO[0000] Create container whalesay.app
INFO[0000] Starting container whalesay.app id:36272c4751ed from image bobi/whalesay:master
INFO[0000] Waiting for 1s to ensure whalesay.app not exited abnormally...
INFO[0001] OK, containers are running: whalesay.app
All good.

We can check the logs.

docker logs whalesay.app

And see our whale talking.

 _____
< boo >
 -----
    \
     \
      \
                    ##        .
              ## ## ##       ==
           ## ## ## ##      ===
       /""""""""""""""""___/ ===
  ~~~ {~~ ~~~~ ~~~ ~~~~ ~~ ~ /  ===- ~~~
       \______ o          __/
        \    \        __/
          \____\______/

Pushing with deploy

Once we have built the image we can push it to some registry. We will use the public Docker Hub for this purpose. If you are running Docker on OSX or Windows, start the commands bellow from the Docker terminal, or modify your deploy shortcut script so it will set some Docker environment variables.

Register for a free account on Docker Hub.
Once you login and confirm your email you can create a new repository. This is where our image will be pushed.

The details here should match our deploy config we created earlier.
Before we can push we need to login with the Docker client. Start this command and it will prompt you for your credentials.
```
docker login
```

Finally push with deploy.

./deploy.sh push deploy-tutorial

The output should look similar to this:

Pushing project deploy-tutorial branch master ...
==========
docker push bobi/whalesay:master
The push refers to a repository [docker.io/bobi/whalesay] (len: 1)
4828b20471bf: Image successfully pushed
35dc128dd143: Image successfully pushed
fb434121fc77: Image already exists
5d5bd9951e26: Image successfully pushed
99da72cfe067: Image successfully pushed
1722f41ddcb5: Image already exists
5b74edbcaa5b: Image successfully pushed
676c4a1897e6: Image successfully pushed
07f8e8c5e660: Image already exists
37bea4ee0c81: Image successfully pushed
a82efea989f9: Image successfully pushed
e9e06b06e14c: Image successfully pushed
master: digest: sha256:519e0f8a645657df080320157e2dcc0537dea0dbf9a92f49aa6699478678d5ca size: 22081
All good.

And we should have our image up in Docker Hub. Now this image can be downloaded by others.

Cleaning up with deploy

Here we perform two tasks - clean (aka delete) the local repo directory and remove the Docker image (rmi). Since the image is in use by the stopped container from our last run, we also pass the -force flag.

If you are running Docker on OSX or Windows, start this from the Docker terminal, or modify your deploy shortcut script so it will set some Docker environment variables.

./deploy.sh clean,rmi deploy-tutorial -force

The output will look similar to this.

Cleaning project deploy-tutorial branch master ...
==========
Using pod definition /Users/bobi/Downloads/deploy-tutorial/whalesay.pod.yml.
rocker-compose clean -f -
INFO[0000] Reading manifest from STDIN
Removing /Users/bobi/Downloads/deploy-tutorial ...
docker rmi -f bobi/whalesay:master
Untagged: bobi/whalesay:master
Deleted: 07db1c937baa0b92c51898c00b581eb22d3abe56586dd1370ce94fb69e061b26
Deleted: bd677345681ffd1112dff0c36a28f0dab0b0194a307339c31da983043455fcea
All good.

Authors

Borislav Peev (borislav.asdf at gmail dot com)
