Read charts and results

View Markdown

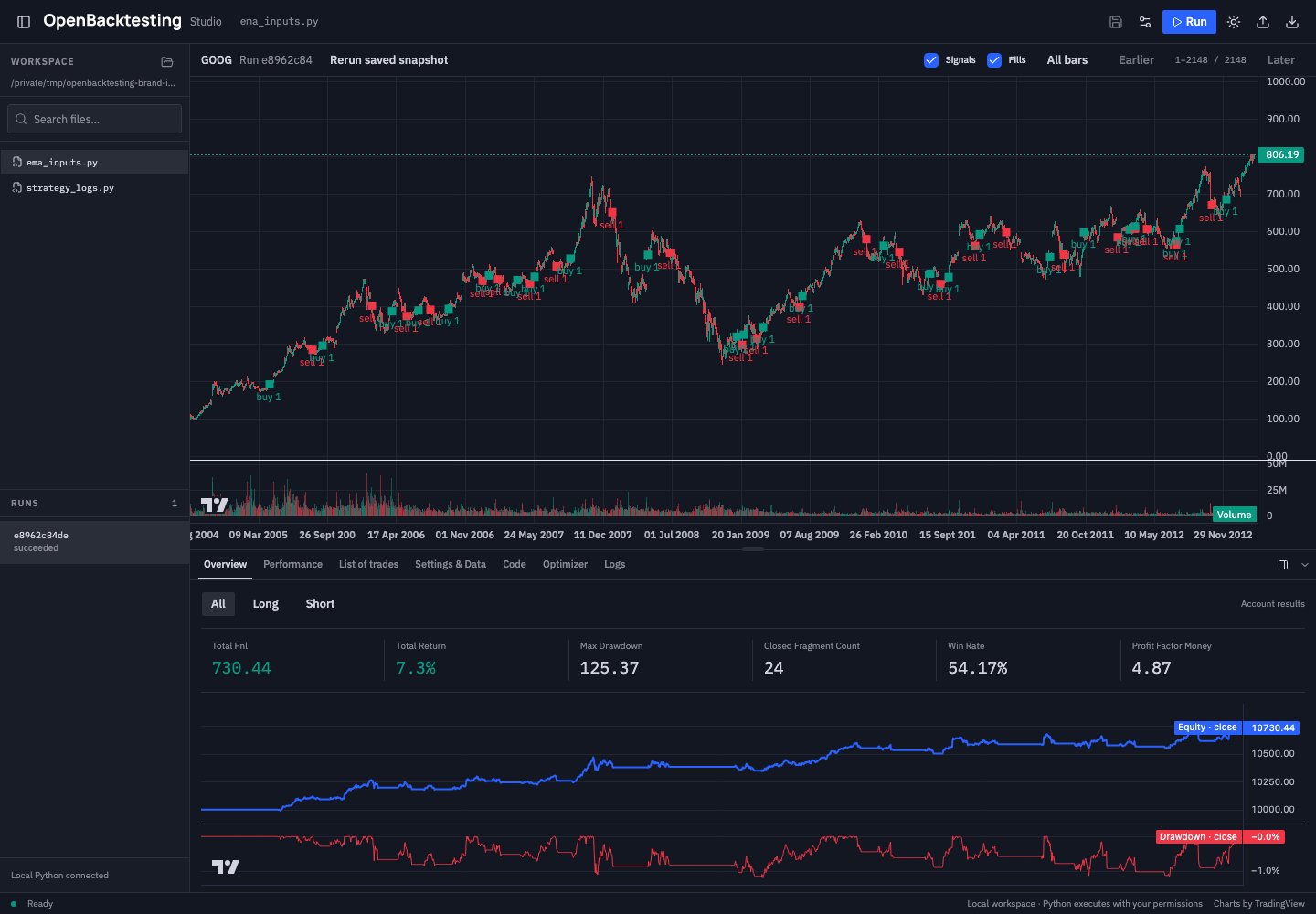

The chart shows the selected run's saved data. Signals and Fills control separate layers; All bars, Earlier, and Later change the displayed window. Indicator declarations determine which series appear on the main chart or secondary panes. Click a trade's location action to inspect its original execution.

Tab	What to inspect
Overview	Headline metrics and the equity curve
Performance	Detailed metrics and All / Long / Short contributions
List of trades	Trades and execution tables, record details, and chart locations
Settings & Data	The configuration and data identity saved for this run
Code	The selected workspace file or an explicitly opened source snapshot
Optimizer	Saved parameter experiments and their trial reports
Logs	Strategy messages, worker output, and errors

Use the panel icon beside the tabs to move results below the chart or to its right. Drag the divider to resize; focus it and use arrow keys for keyboard resizing. Placement and size are remembered. Collapsing the panel does not discard its state.

Select a completed entry under Runs to reopen its saved report and chart without executing the strategy again. Rerun saved snapshot explicitly creates a new run from captured source and data when those resources are available. Out of date means the displayed run differs from the current source or configuration; it does not invalidate the saved result.
